Description
Features:

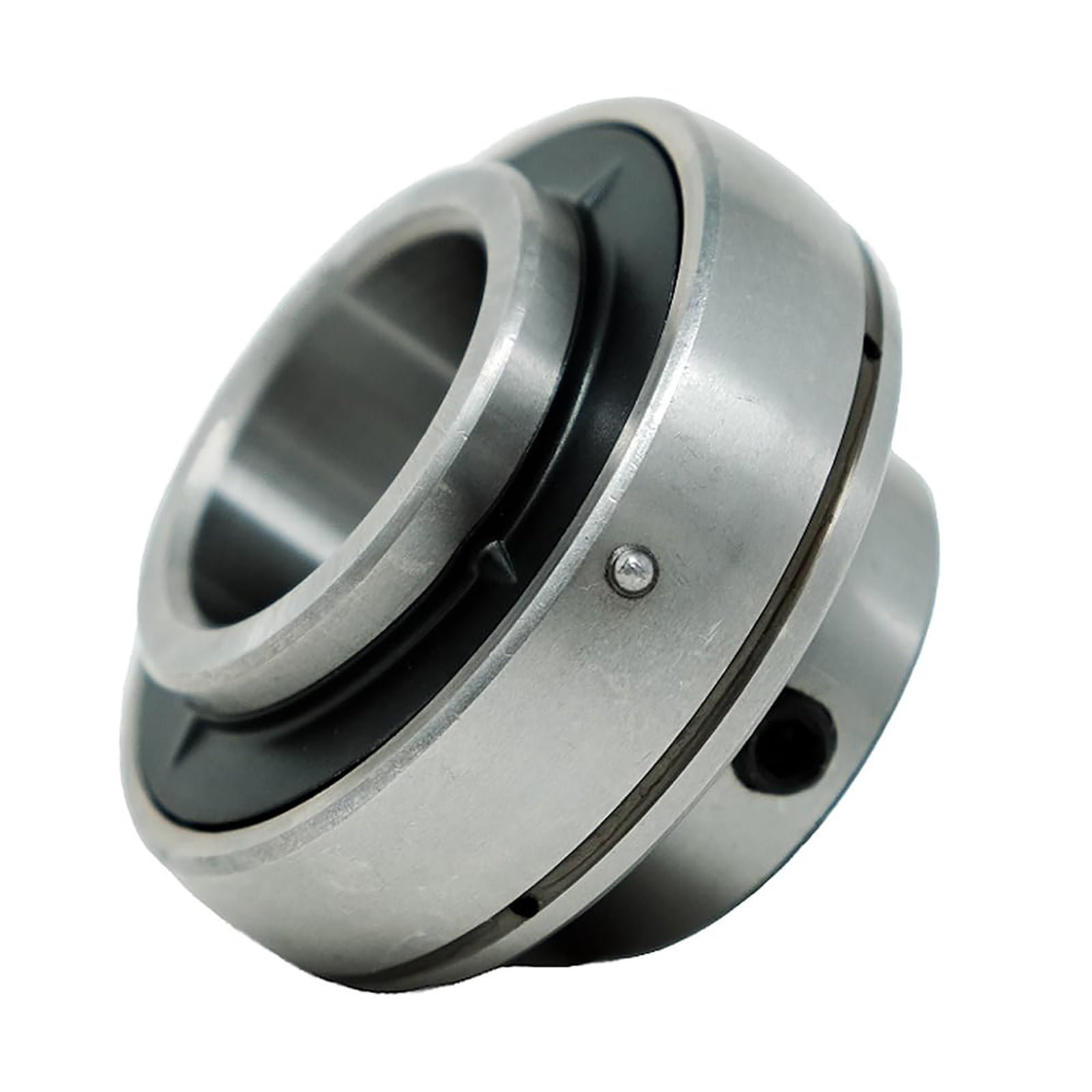

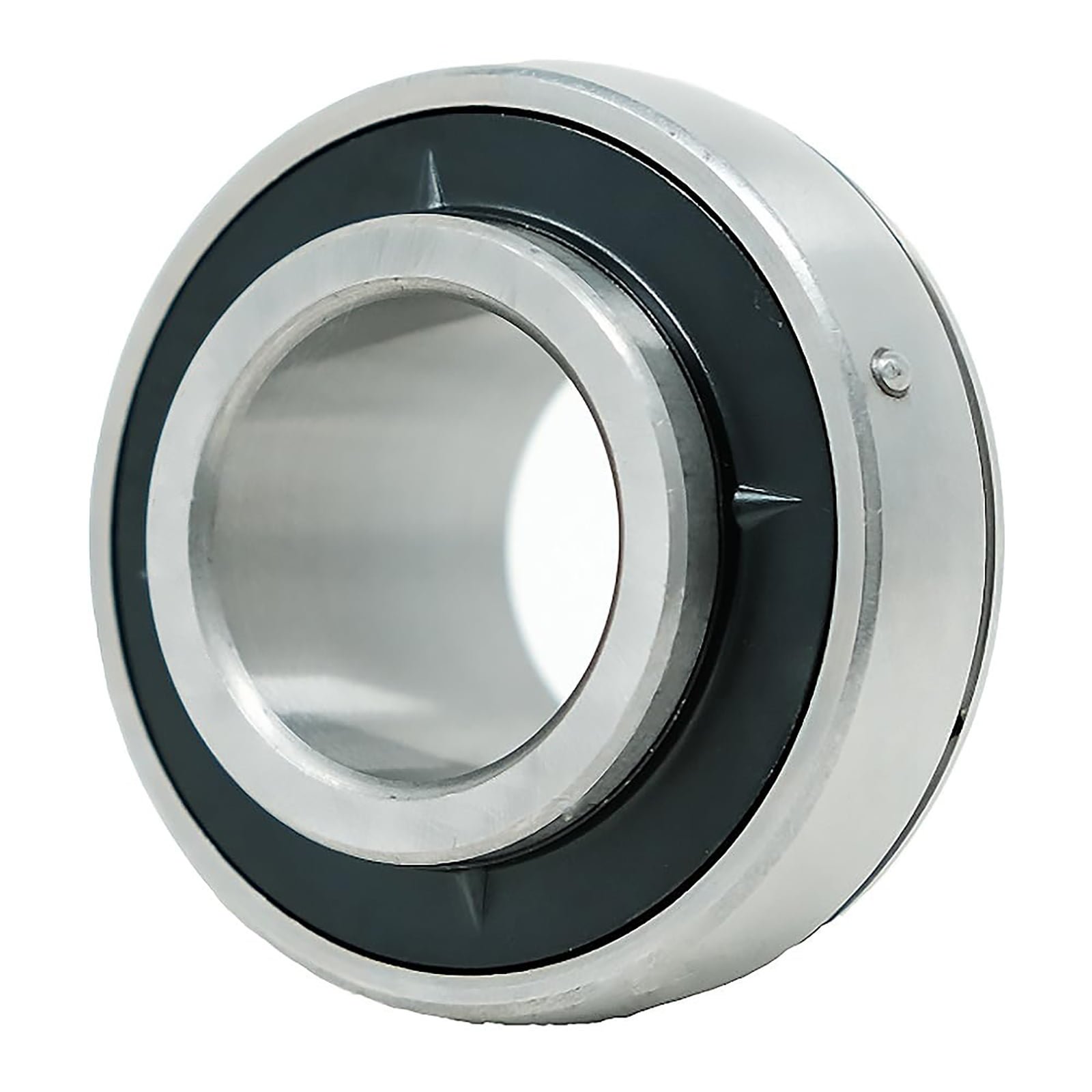

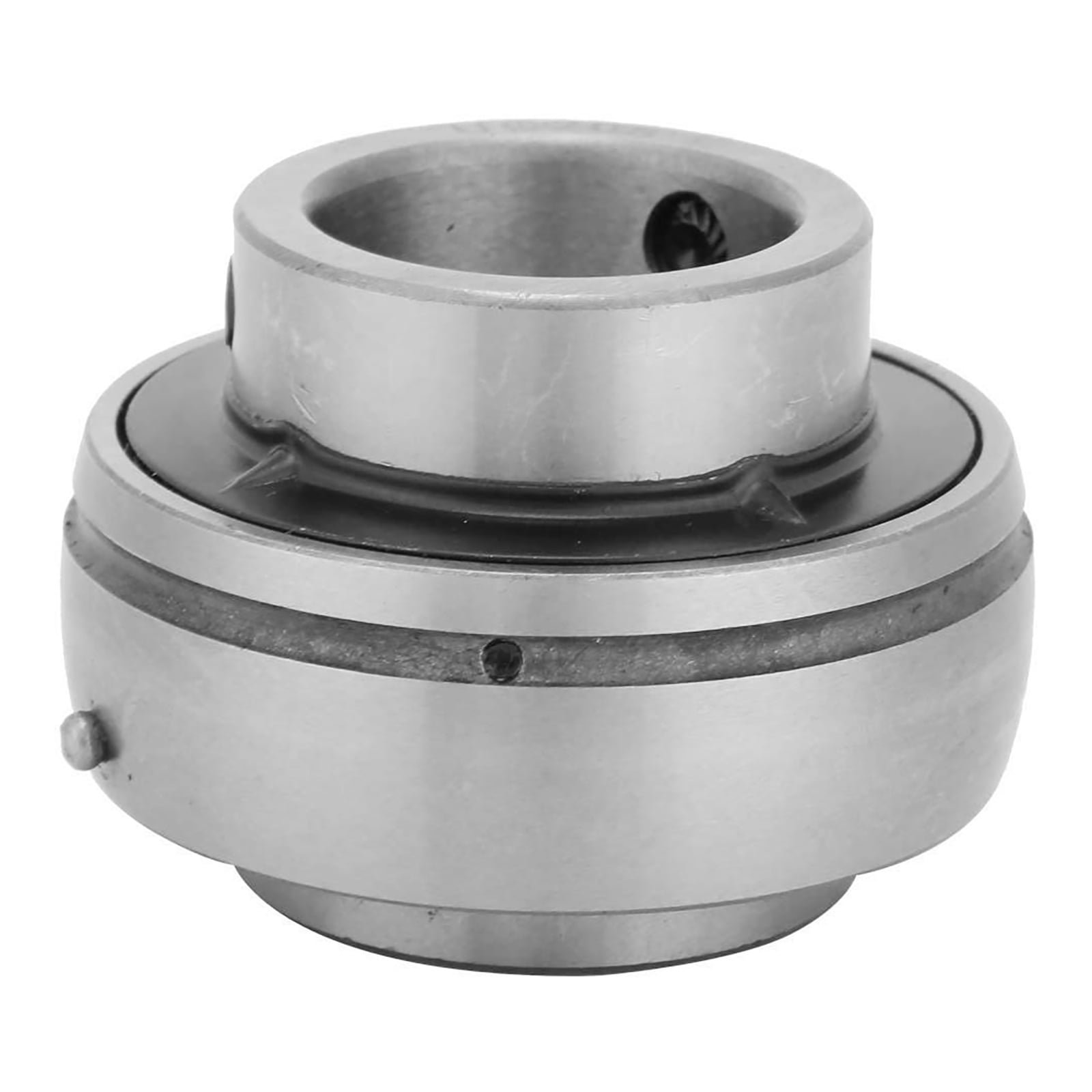

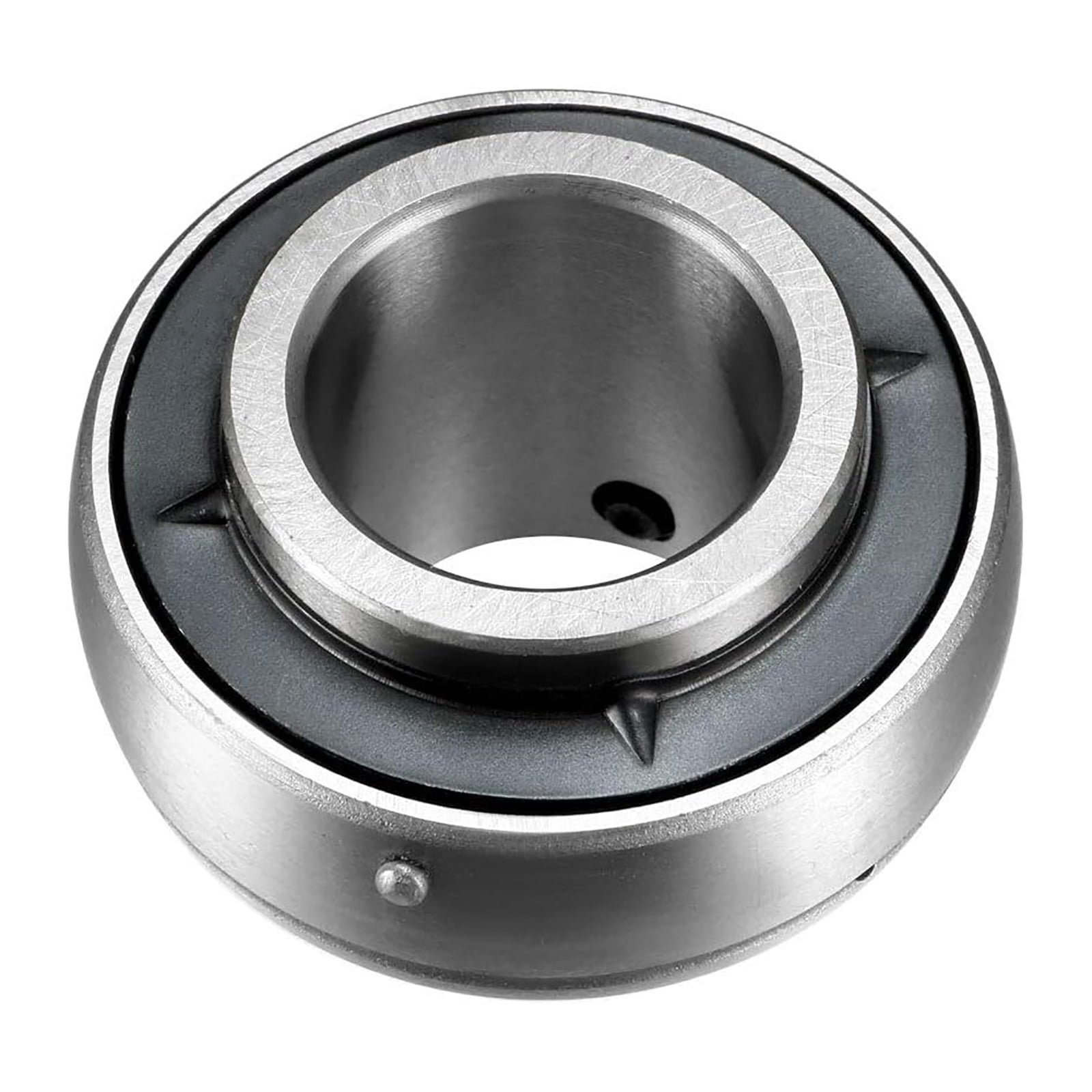

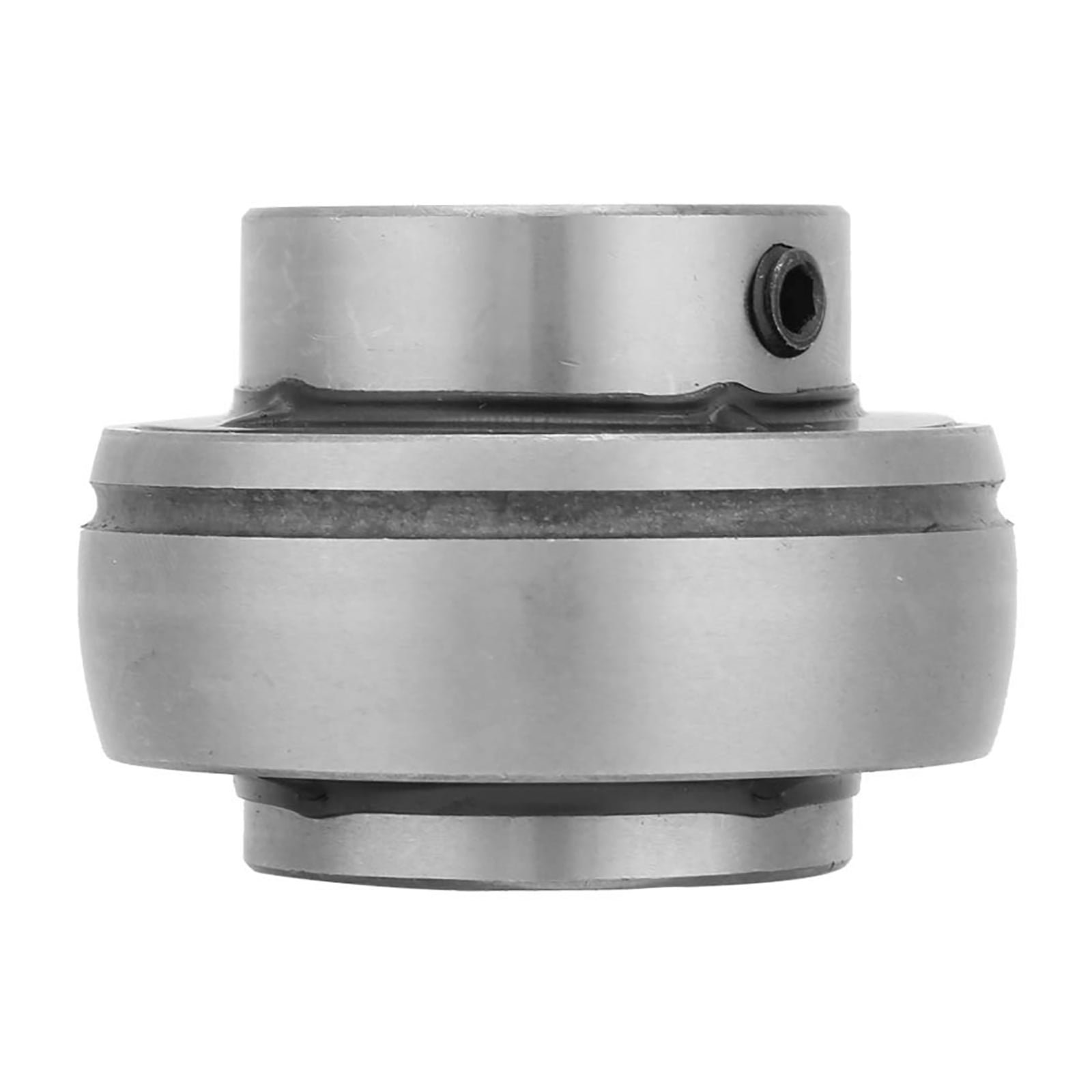

UC205 is an insert ball bearing with two set screws on the extended end of the inner ring used for holding onto a shaft. It features lubricating groove access and is pre-lubricated with grease. UC205 insert bearing is self-aligning for standard load capacity. This specific arrangement is suitable for applications where the direction of rotation is alternative. The UC200 series insert bearings are widely used as replacement bearings for pillow blocks, 2-bolt flanges, 3-bolt flanges, 4 bolt flanges, take-up units, and many more.
Applications:
UC205 insert ball bearings are used in a range of applications from agricultural machinery, conveying equipment, construction equipment, packaging, forestry, aggregate, conveyor systems, automotives, shaft supports, food processing, and in the printing industry.
Specification:
Type: Insert Bearing
Bearing Model: UC205
Material: Chromium Steel

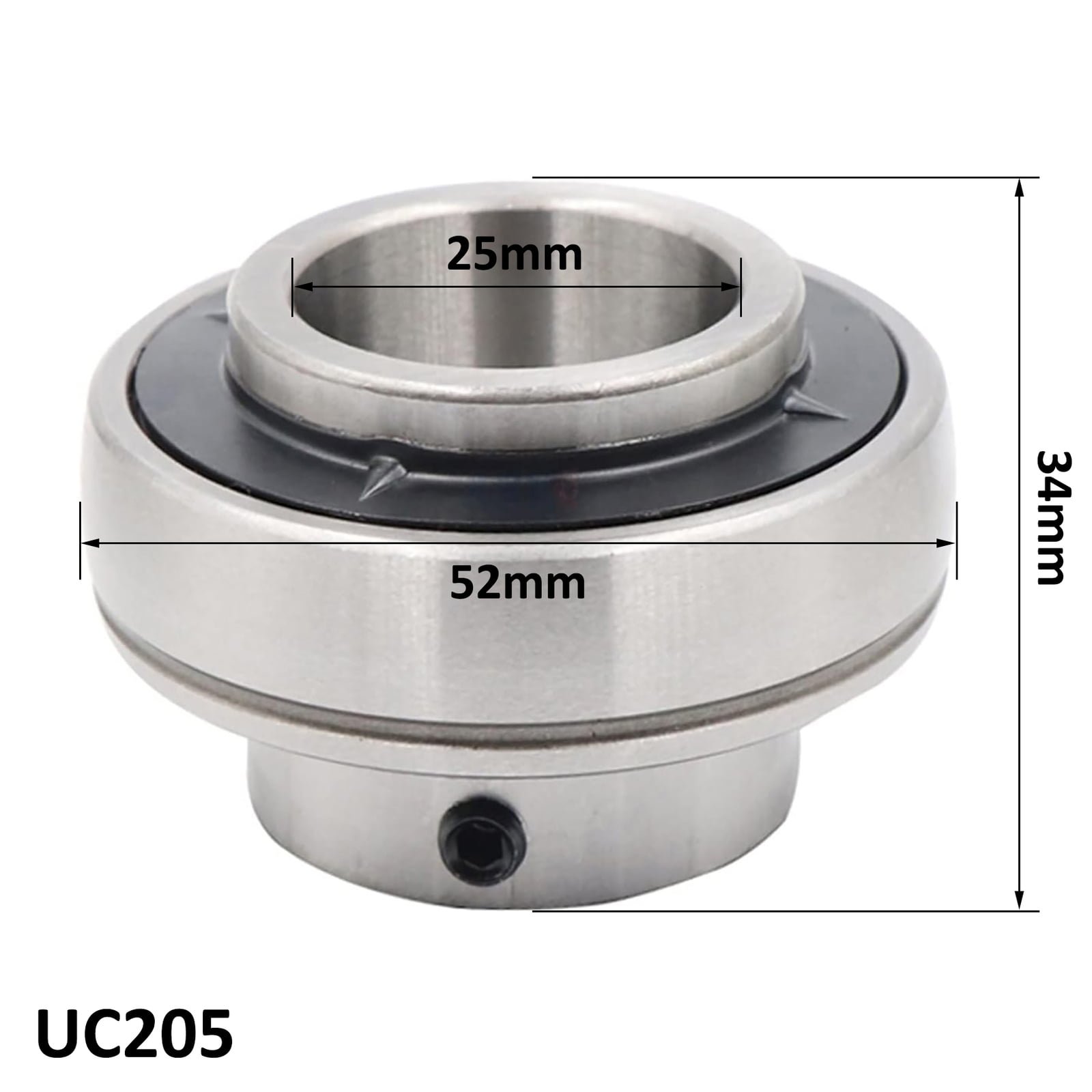

Inner Diameter: 25mm
Outer Diameter: 52mm
Width: 34mm
Package included:
1 x UCP205 Bearing
Notes:
Please check the sizes and original part before purchase.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
